Marathon LED strips bring an outstanding solution: Although constant voltage, they feature built-in constant-current chips in order to avoid voltage drops therefore a 25-meter streak can be fed from one end or 50 meters when fed from two ends. However, they are perfectly constant voltage strip:
- - they can be fed by 24V DC constant voltage power supplies
- - they are dimmable
- - IP65 versions are also available
Key Features of Marathon LED Strips:
- - High Density and Brightness: Marathon LED strips come in different variants, including the 2835 SMD series with 60 LEDs per meter. For example, the strip with 5 watts per meter offers excellent brightness while remaining energy efficient.
- - Durability and Protection: With an IP65 rating, these strips are suitable for both indoor and outdoor use, resistant to dust and water splashes, ideal for a variety of installation environments.
- - Flexible and Customizable: They can be cut to size, and are compatible with multiple controllers, making them easy to integrate into complex lighting designs.
Case Study: Powering a 50-Meter Marathon LED Strip with Two ChiliBlu Power Supplies
Let’s explore how the 50-meter Marathon LED strip (delivered one one single 50-m real in one length) can be effectively powered using two ChiliBlu power supplies from both ends. This configuration will address voltage drop concerns over the length of the strip and ensure uniform brightness across all 50 meters.
System Setup:
- - LED Strip: 50 meters of the Marathon 24VDC LED strip (5W/m)
- - Power Supplies: Two ChiliBlu power supplies, each at the two ends (150W each, 24V DC).
- - Configuration: The 50-meter strip is cut into two 25-meter sections, each powered from opposite ends.
Power Distribution:
- - Voltage Drop Compensation: Thanks to the built-in cc chips, we eliminate any voltage drop that might occur if the strip were powered from only one end. The voltage drop can reduce brightness, especially over long distances. This method ensures consistent brightness along the full length of the strip.

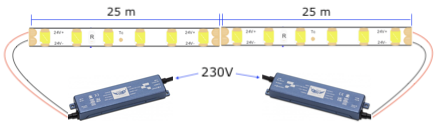

Illustration: Dual Power Supply Setup for 50-Meter Marathon LED Strip
Conclusion:
By integrating Marathon LED strips with ChiliBlu power supplies, users can create efficient, high-performance lighting systems with minimal voltage drop, ensuring even and reliable brightness. This solution is particularly well-suited for large-scale installations, where maintaining consistent lighting across long distances is critical.
With the dual power supply setup, you enhance not only the system's reliability but also its scalability, allowing easy expansion for even larger lighting projects. Whether used for architectural lighting, commercial applications, or home setups, this configuration optimizes both performance and energy efficiency.
Deal for You:
And now the deal is even sweeter for our partners: Buy one 50-m reel of
"MARATHON LED Strip , Constant Current IC , 24 Volt DC , 2835 , 60 led/m , 5 W/m , Natural White , 550 lm/m , IP65" (SKU: 407799)
and you will get 2 pcs of
"Super Small Waterproof Power Supply 150W, 24V, 6.25A, IP67, Size: 172x37x20.6mm" (SKU: 420217)
FREE of CHARGE
